Production Shop Floor
Facilities & Equipment
A modern 32,000+ sq ft facility engineered for accuracy, traceability and smart manufacturing.
Manufacturing capacity
Our Machines
CNC Multi-Axis Milling & Turning across small, medium and large parts.
36
CNC Milling
5
CNC Turning
2
Lathe
14
Conventional Milling
15
Grinding
5
EDM
4
Wirecut
3
Superdrill
1
Profile Grinder
18
Others
Equipment specifications
Machine Specifications
From compact high-speed centres to a 4.2 m double-column machine — capacity for parts of almost any size.

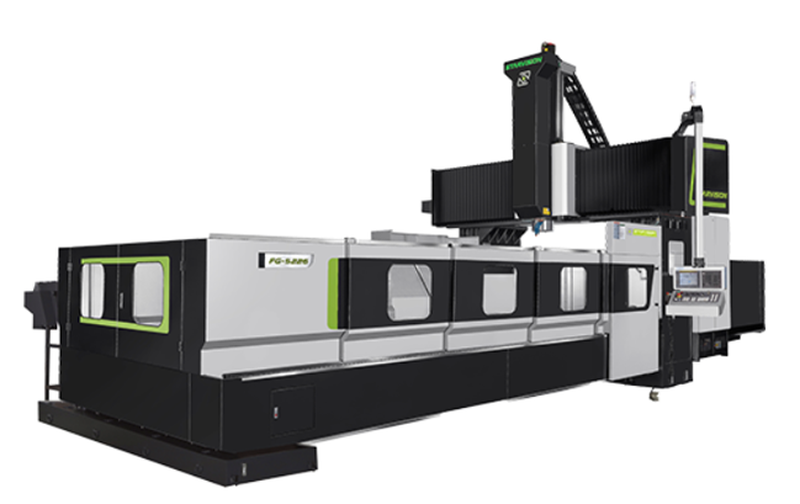

STARVISION FG4226
Double-Column, 5-Face Machining
X-4200 / Y-3400 / Z-1000 mm

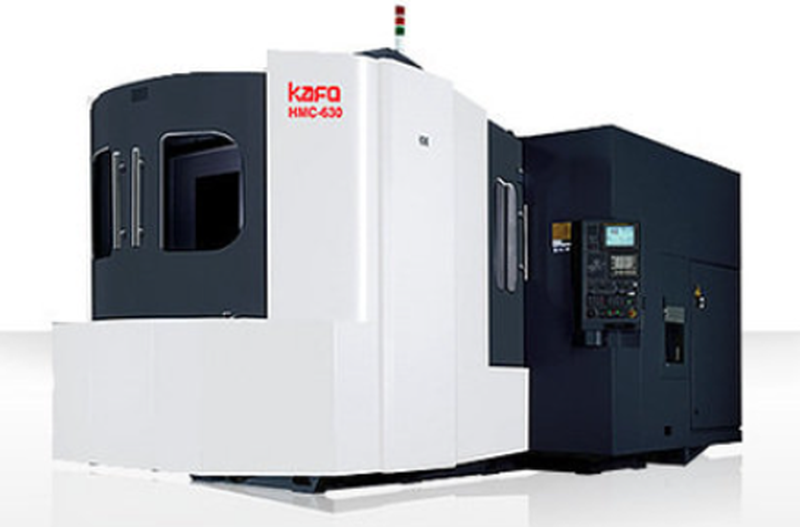

KAFO
Horizontal Machining (HMC-630)
X-1050 / Y-800 / Z-880 mm

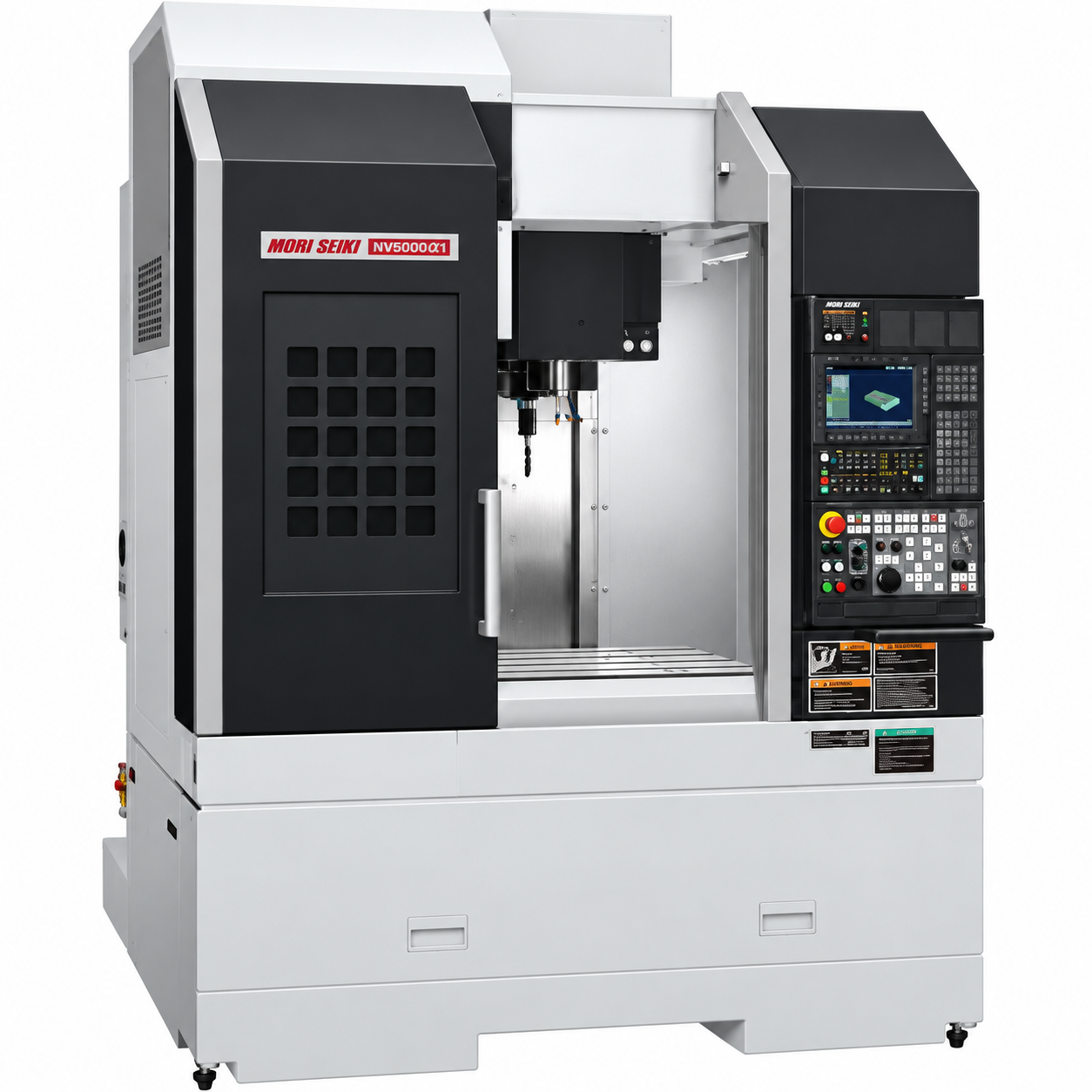

MORI SEIKI
Vertical Machining Center
X-600 / Y-530 / Z-510 mm

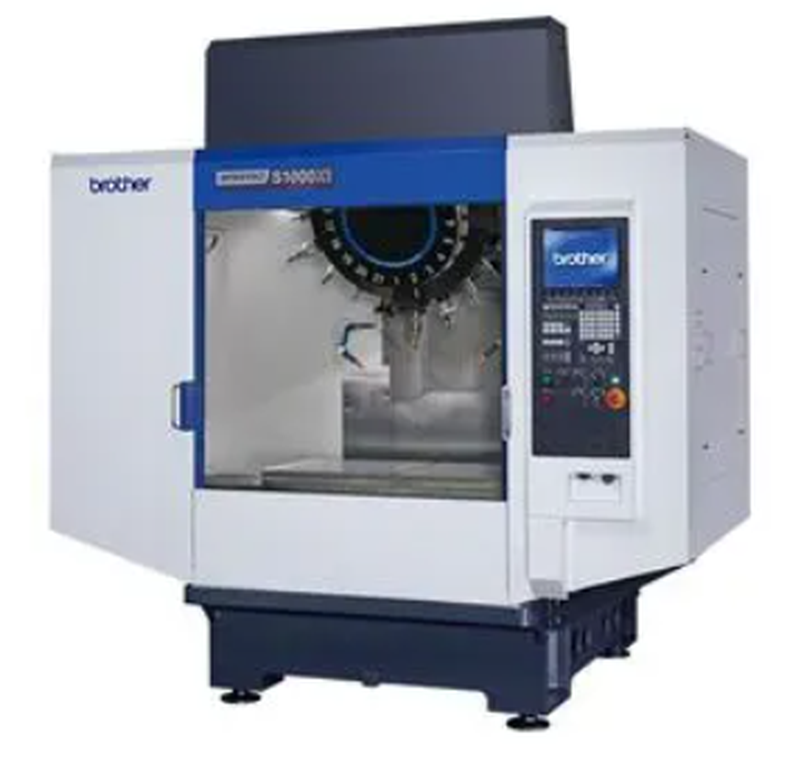

brother
High-Speed Drilling & Tapping
X-1100 / Y-500 / Z-480 mm

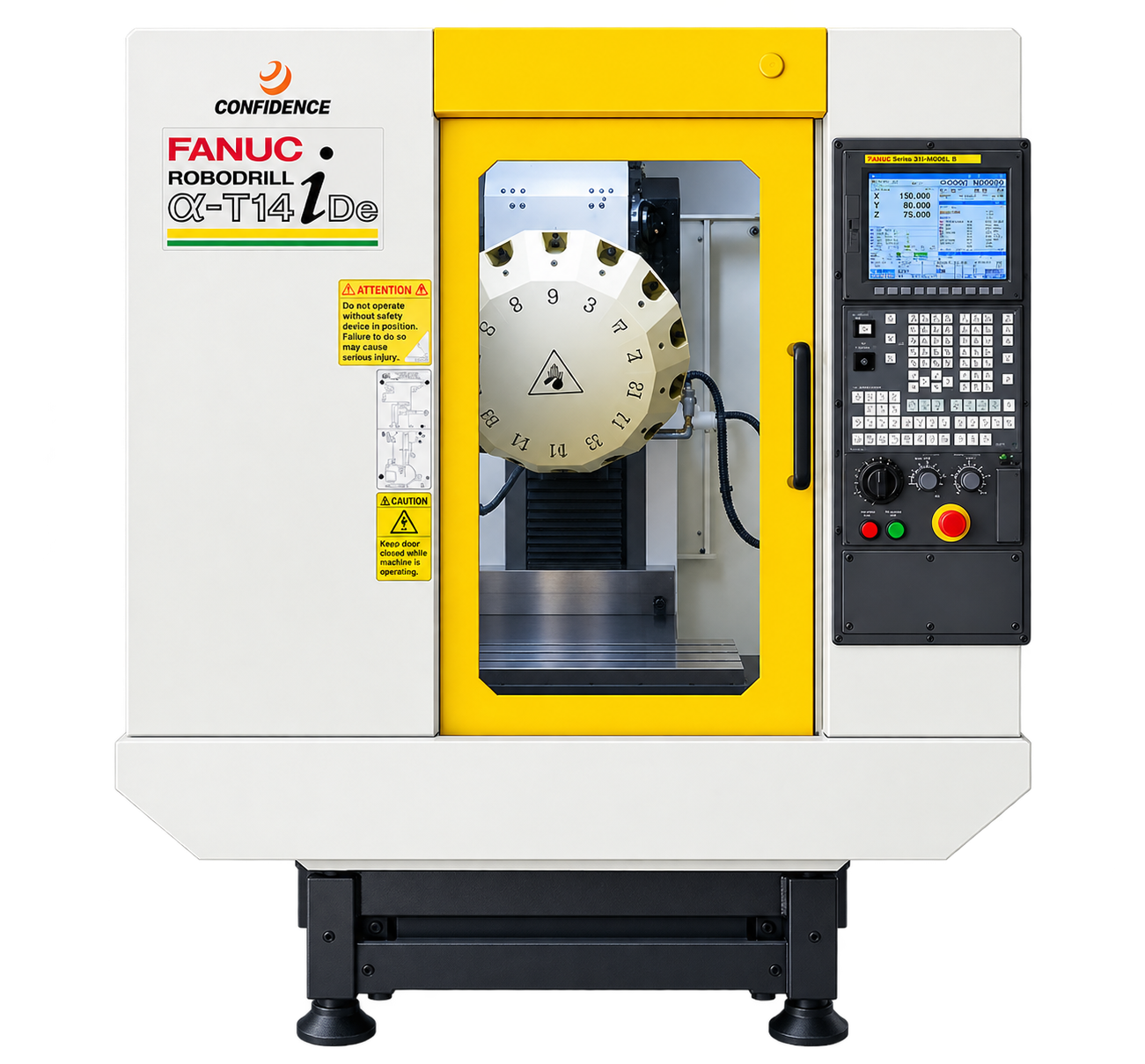

Fanuc
Robodrill Vertical Machining Centre
X-500 / Y-400 / Z-380 mm

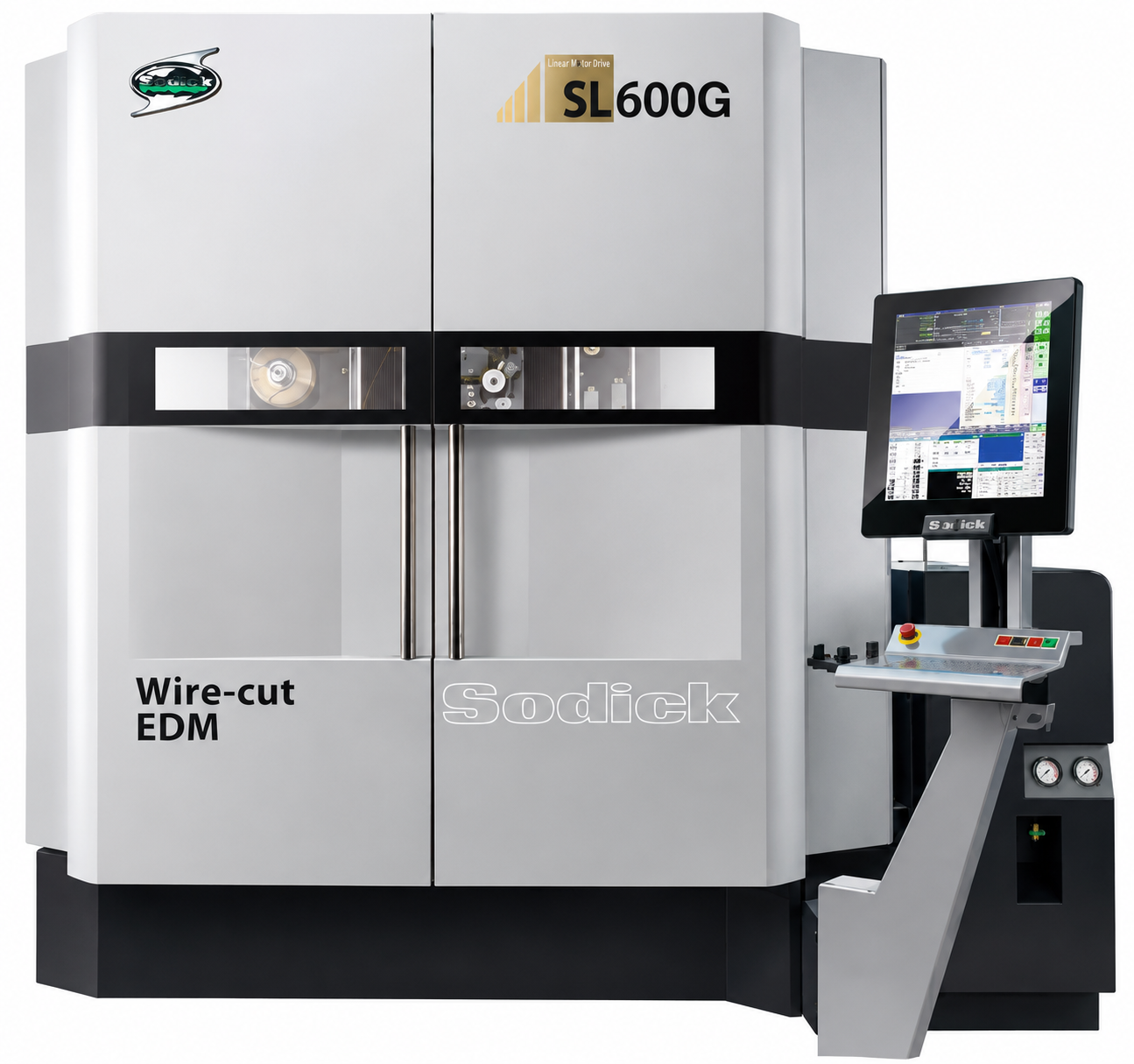

Sodick
Wire-Cut EDM
X-600 / Y-400 / Z-350 mm

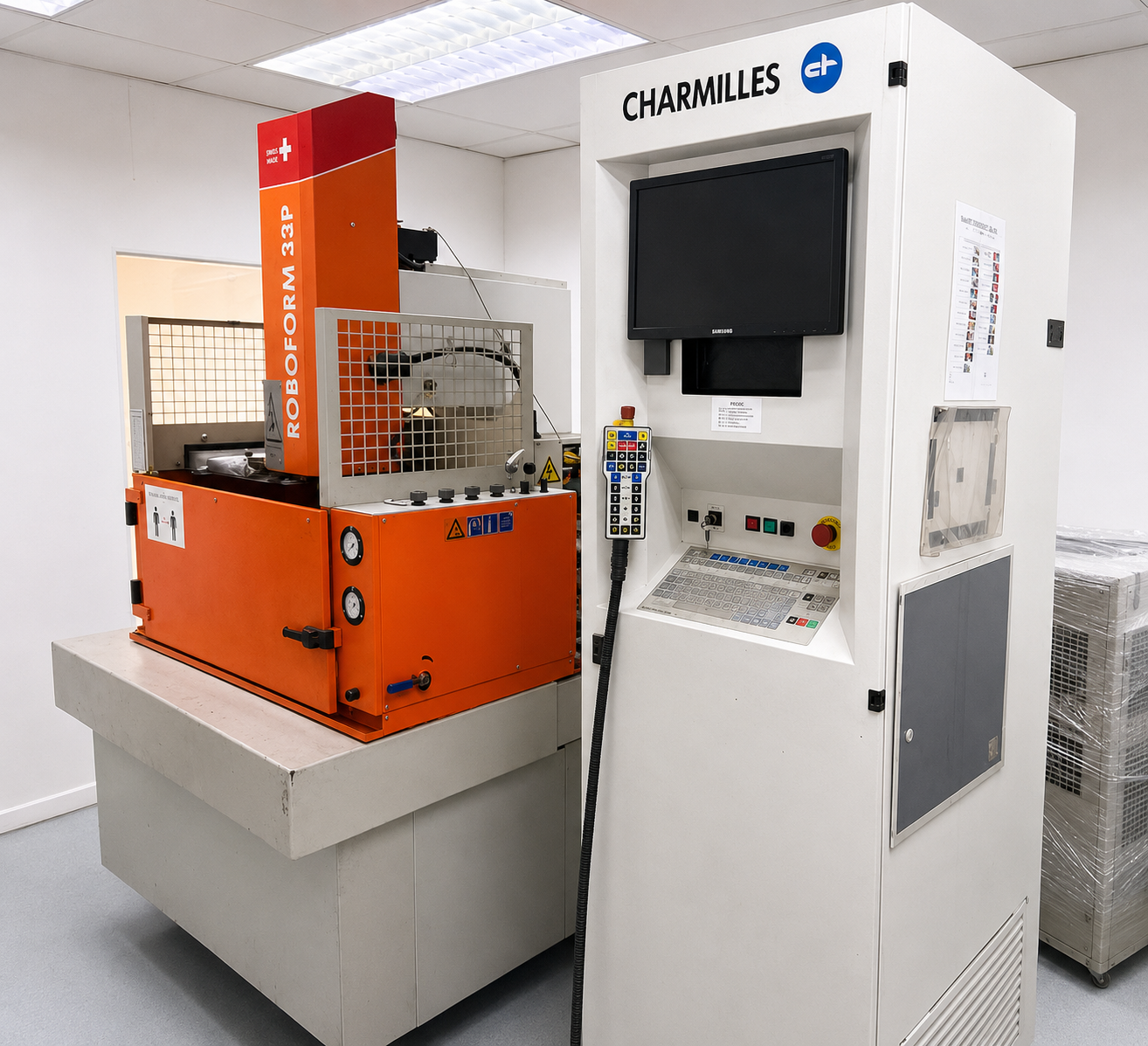

CHARMILLES
EDM
X-350 / Y-250 / Z-250 mm

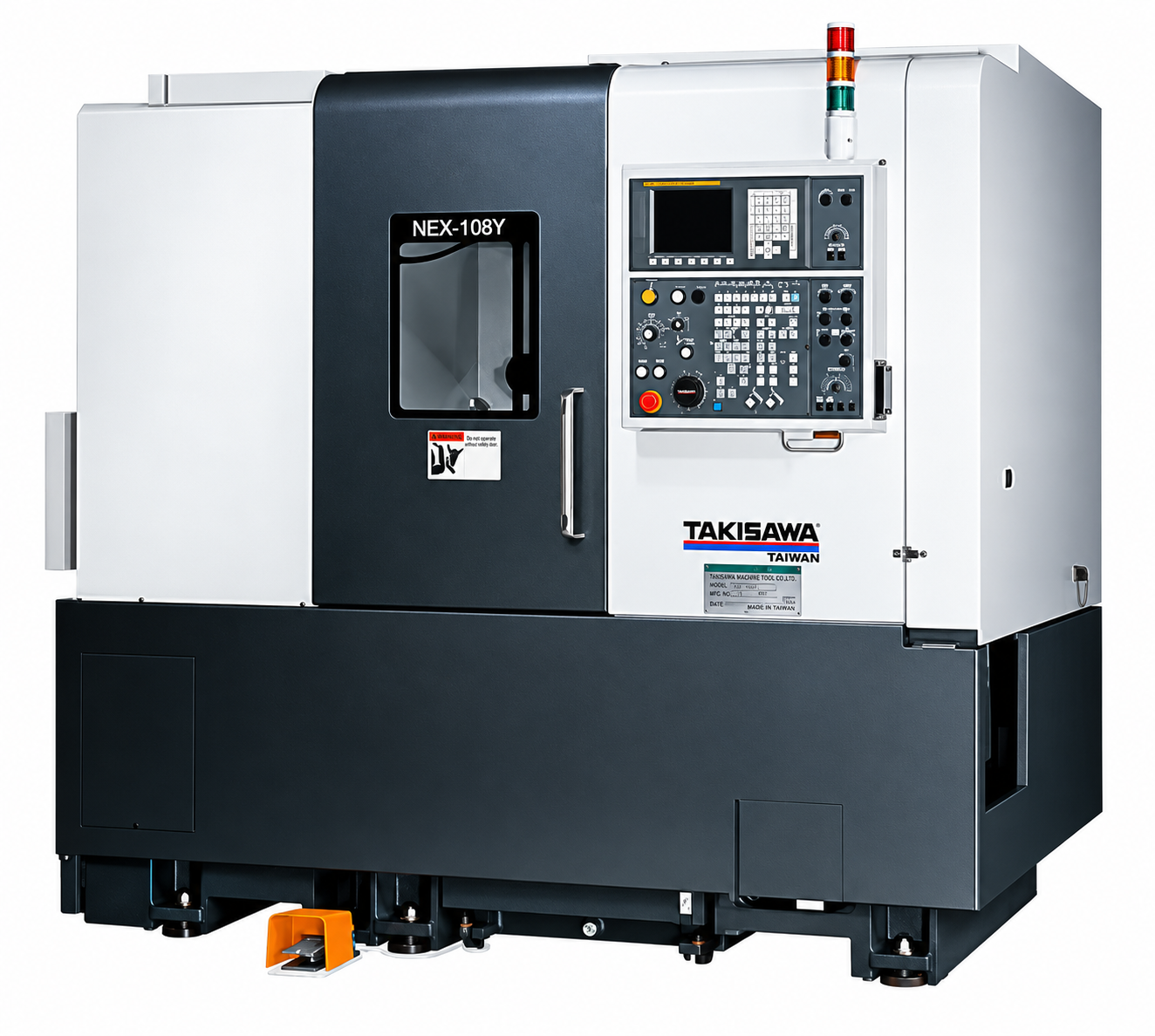

TAKASHIWA
Turn-Mill
8"
Sunmill
Vertical Machining Center
X-2000 / Y-900 / Z-585 mm
Machines by size
< 1.5 m
32
1.6 – 2 m
3
> 4 m
1
Precision
≤ 0.010 mm
Our machine brands
-
Starvision
-
HAAS
-
brother
-
-
MAKINO
-
FANUC
-
CHARMILLES
-
Sodick
-
CITIZEN
-
Bridgeport
-
Mitsui High-tec
-
KAFO
-
-
Okamoto
-
Hartford
-
Sunmill
-
ARES SEIKI
-
CHEVALIER
-
WELE
-
TRIDENT
-
Z-Yang
-
Neuar
-
Agma
-
CASTEK
Inside the factory
Facility Gallery

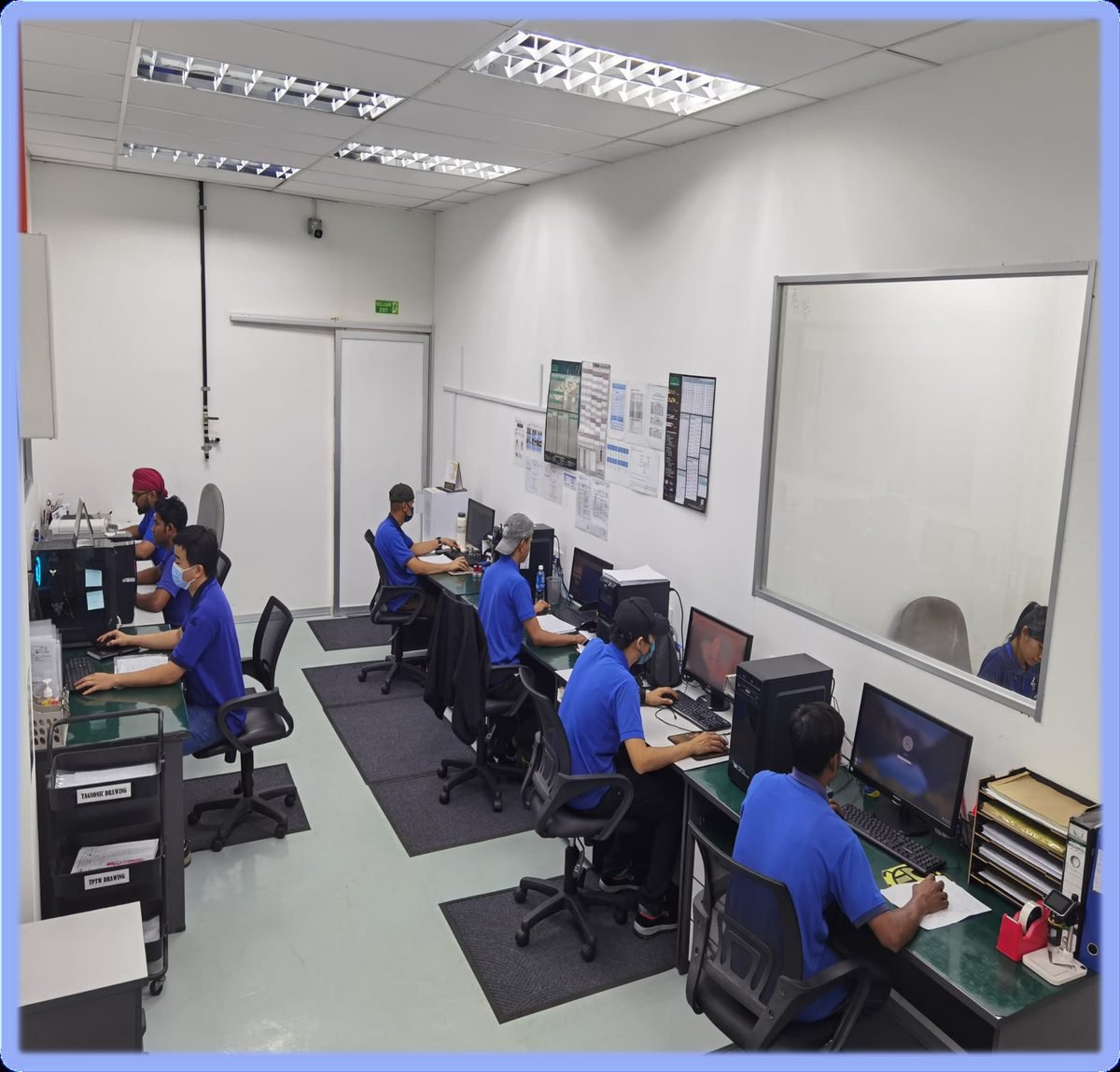

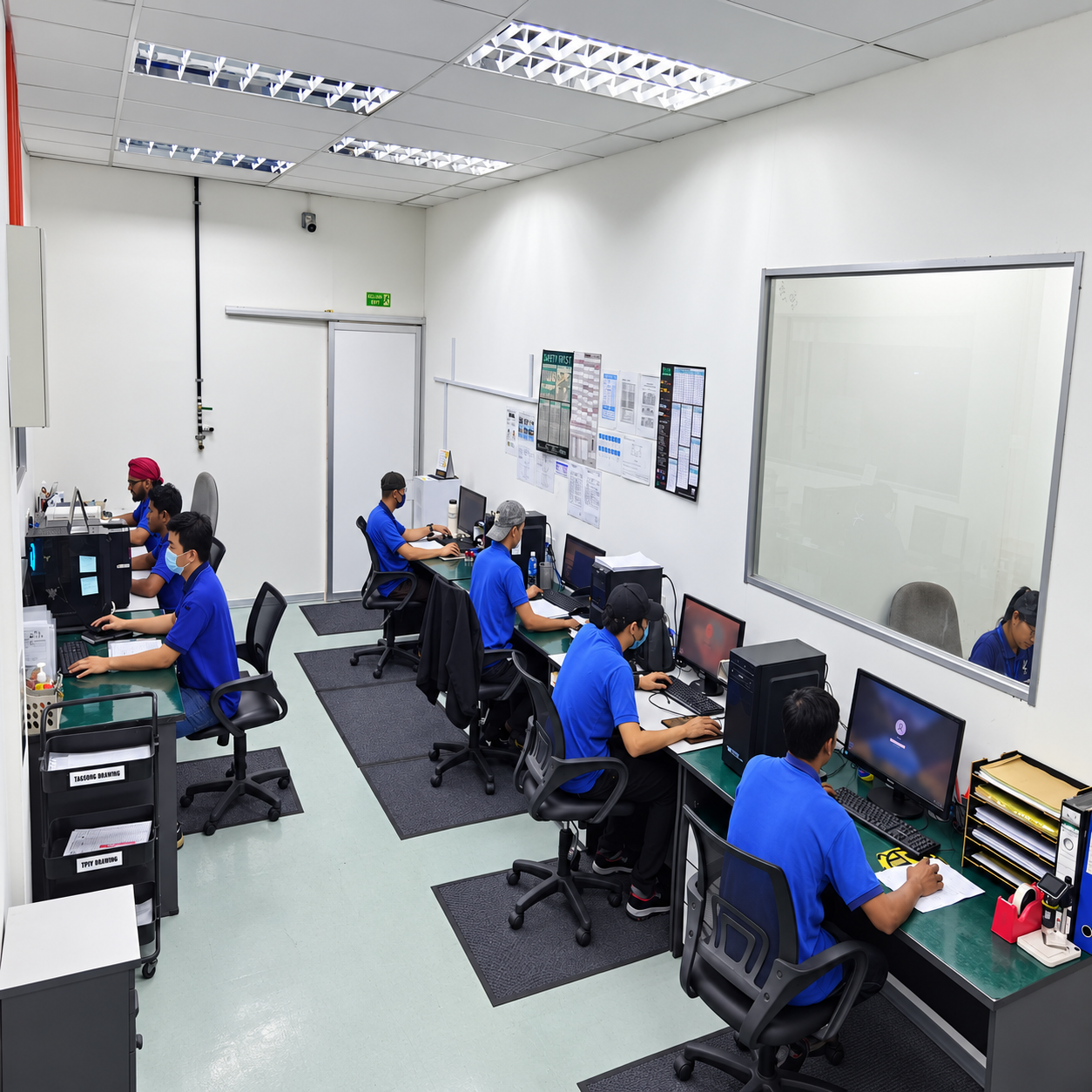

Engineering & Programming Department

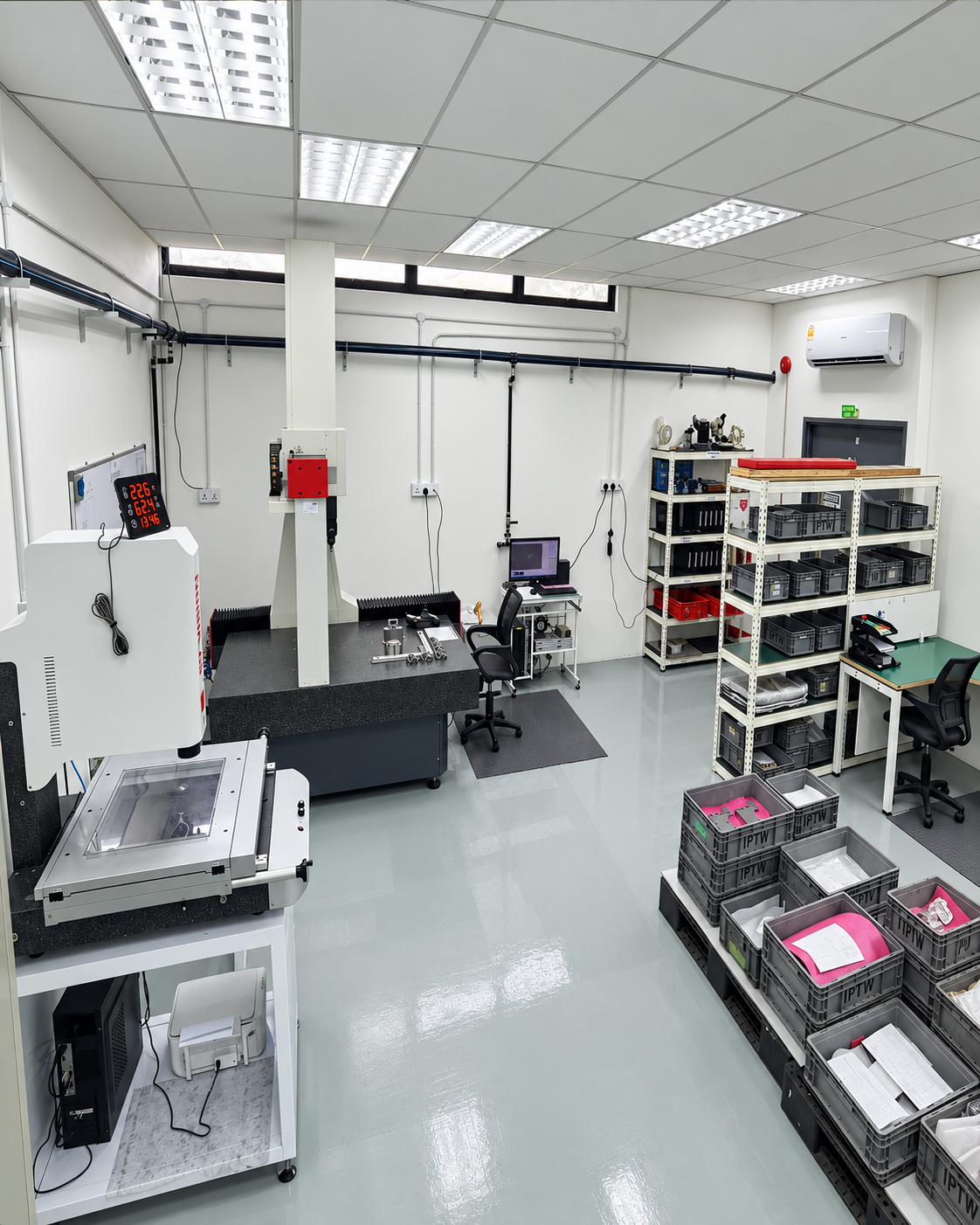

Quality Department

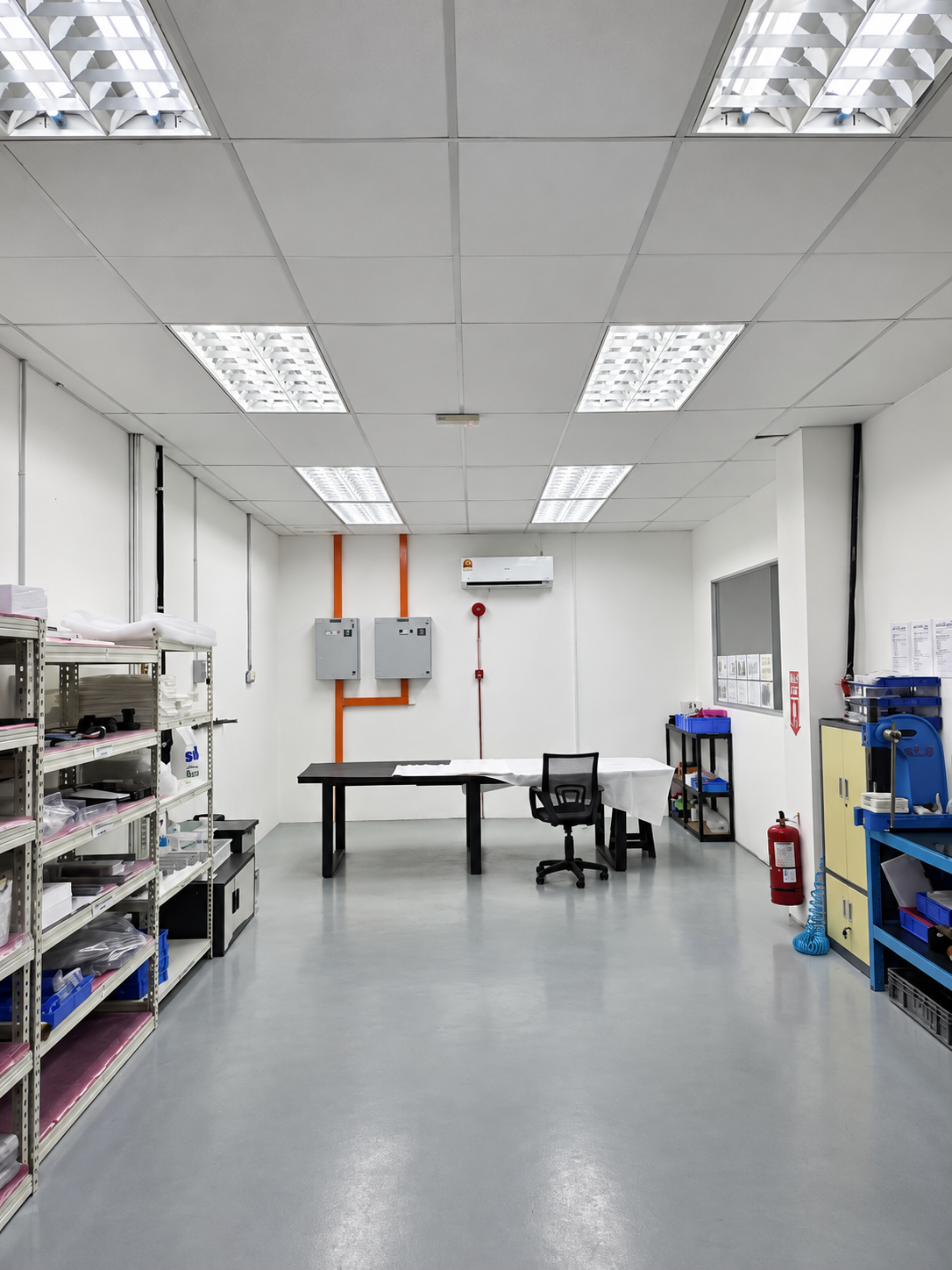

Assembly Department

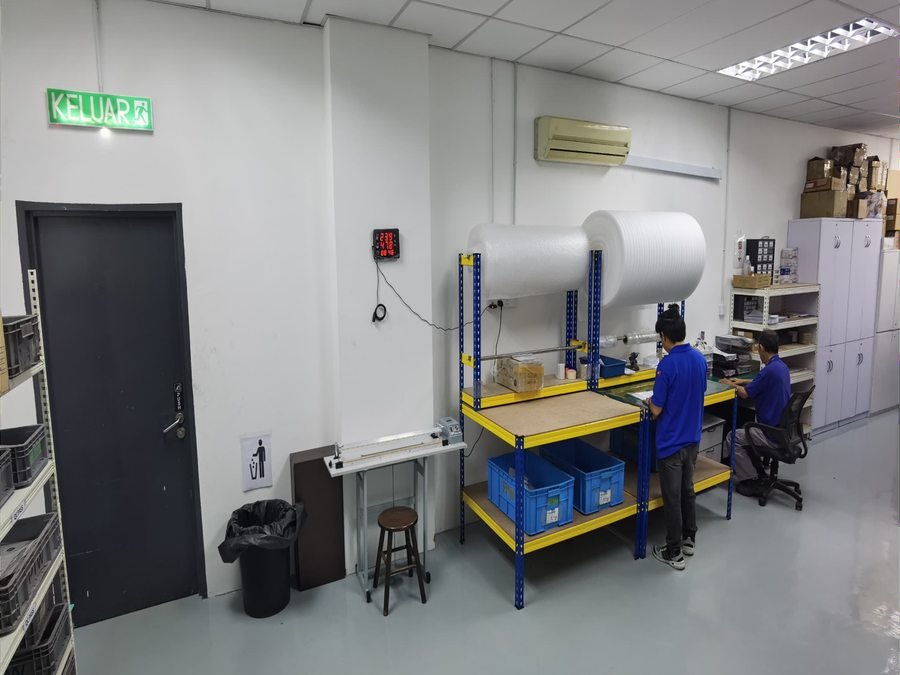

Air-Conditioned Packing Department
Starvision — 4.2m

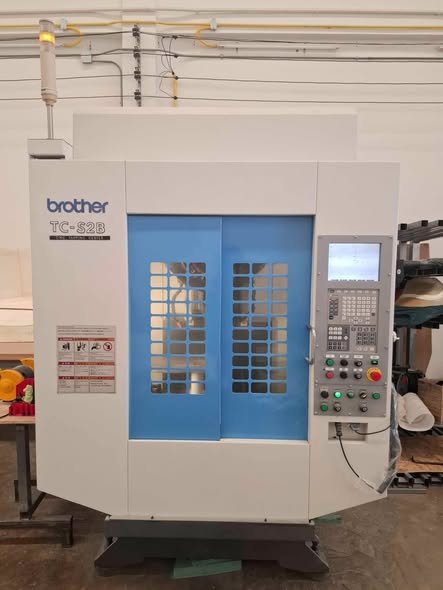

Multi-Axis CNC Milling Center

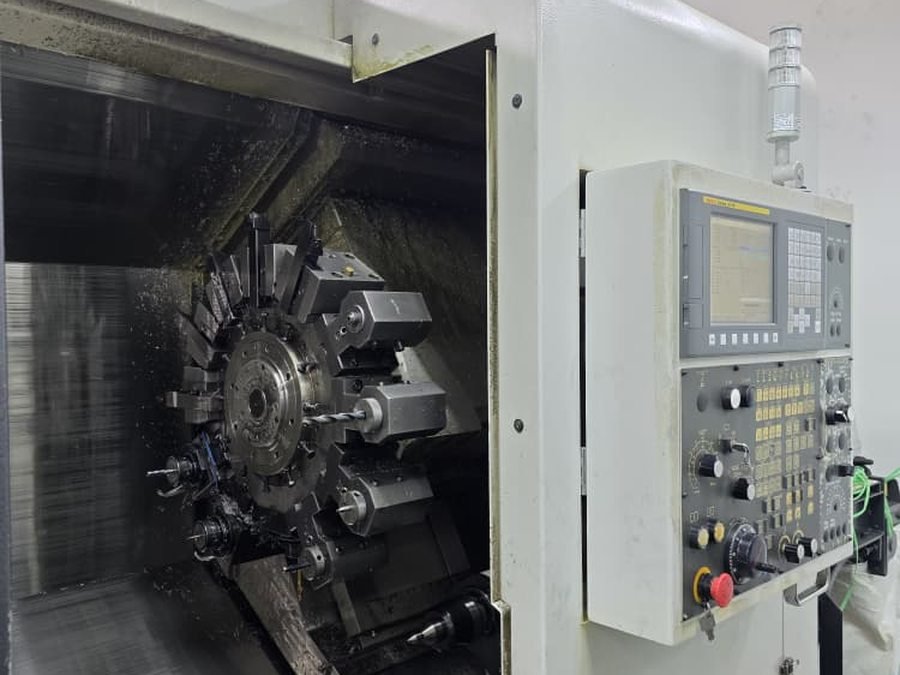

CNC Turn-Mill, Turning & Lathe Machines
Wire-Cut
EDM

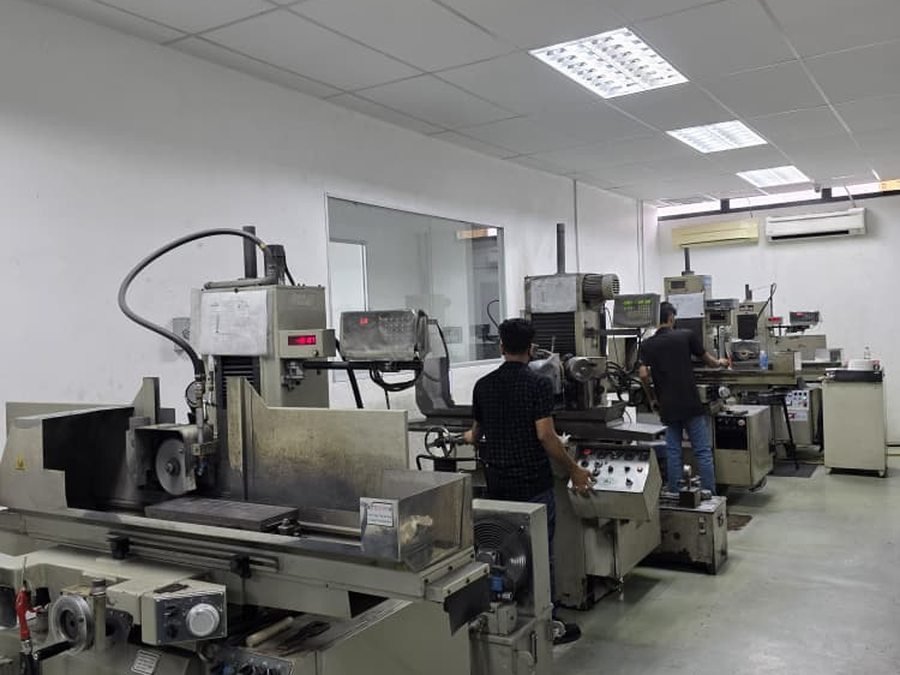

Grinding

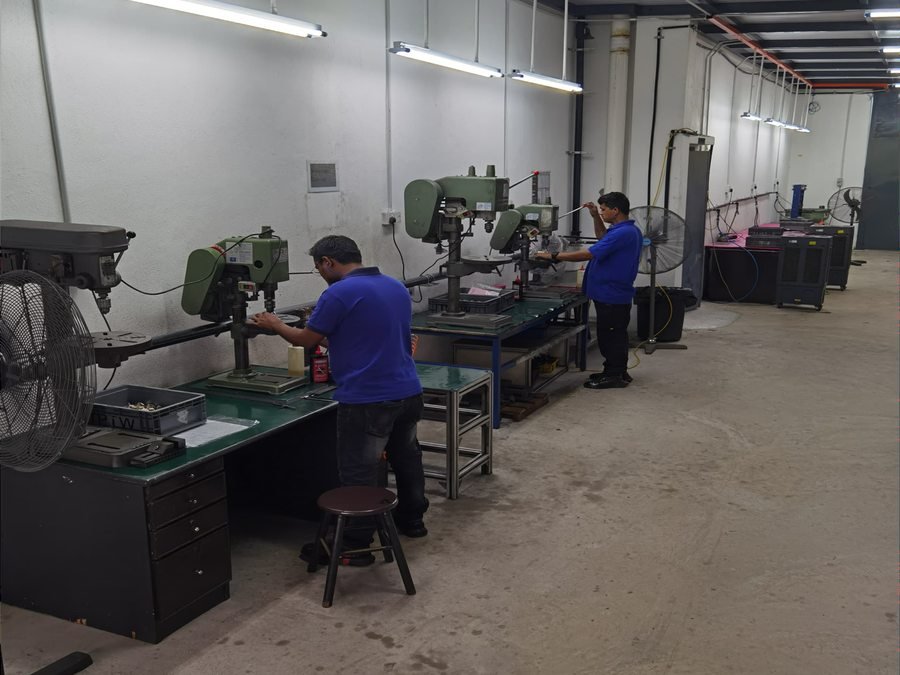

Tapping & Polishing

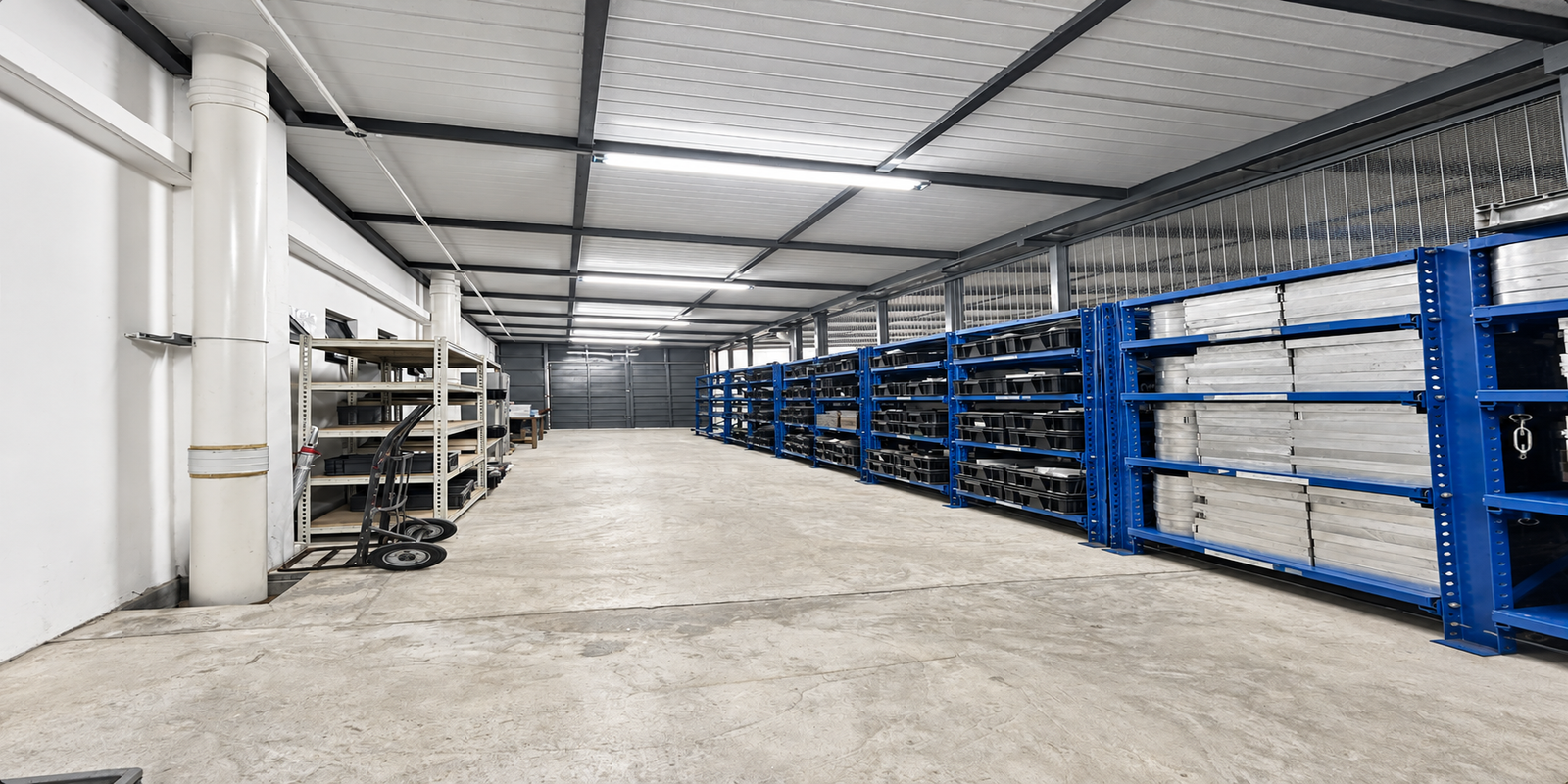

JIT Raw Material Store

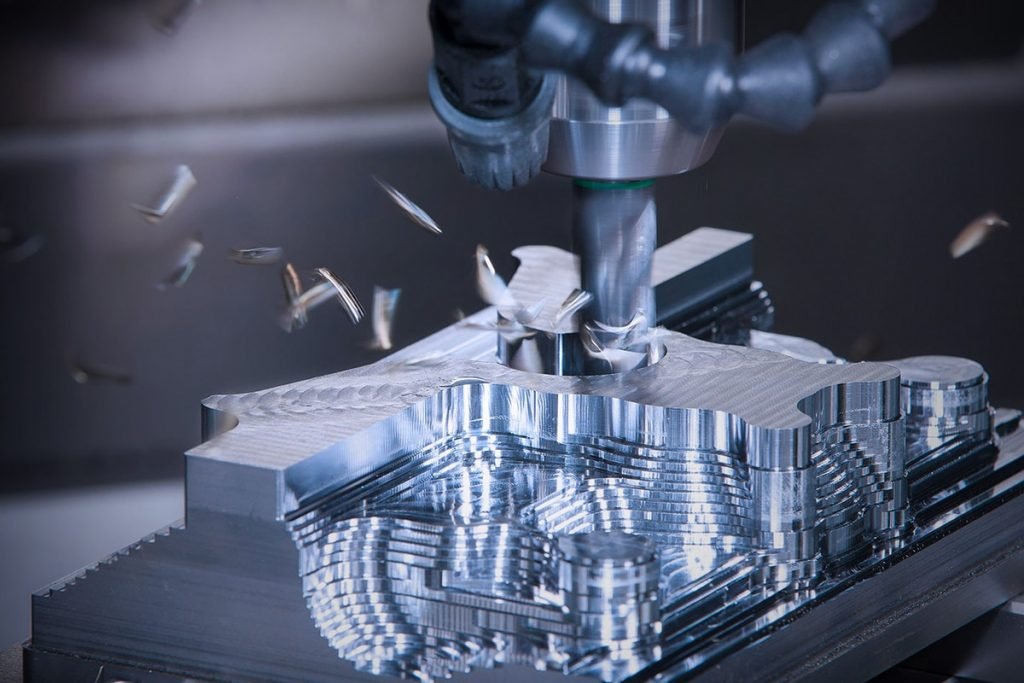

Tool Management & Equipment Room

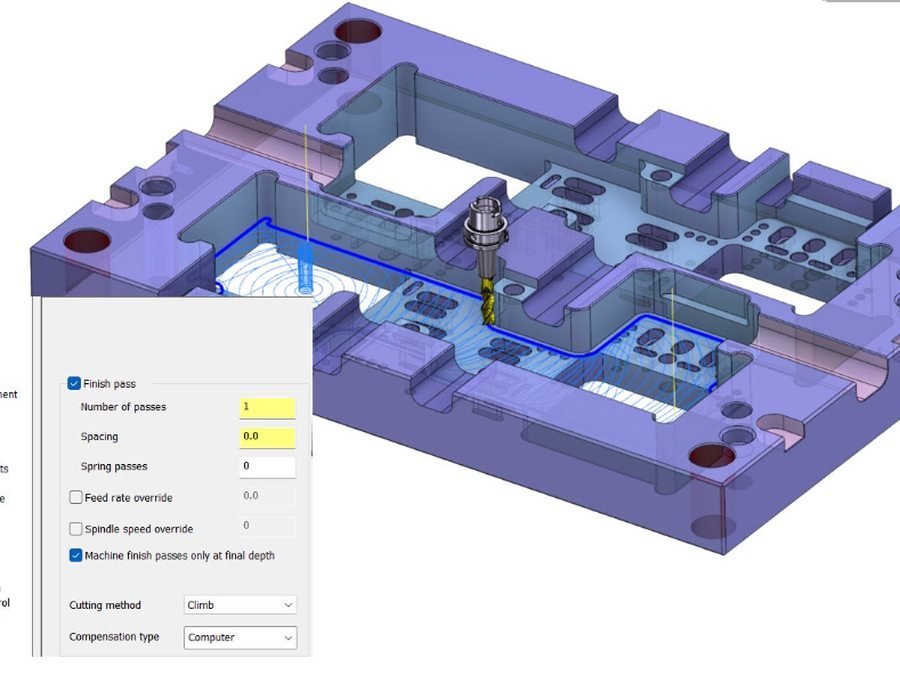

Engineering Software (CAD/CAM)

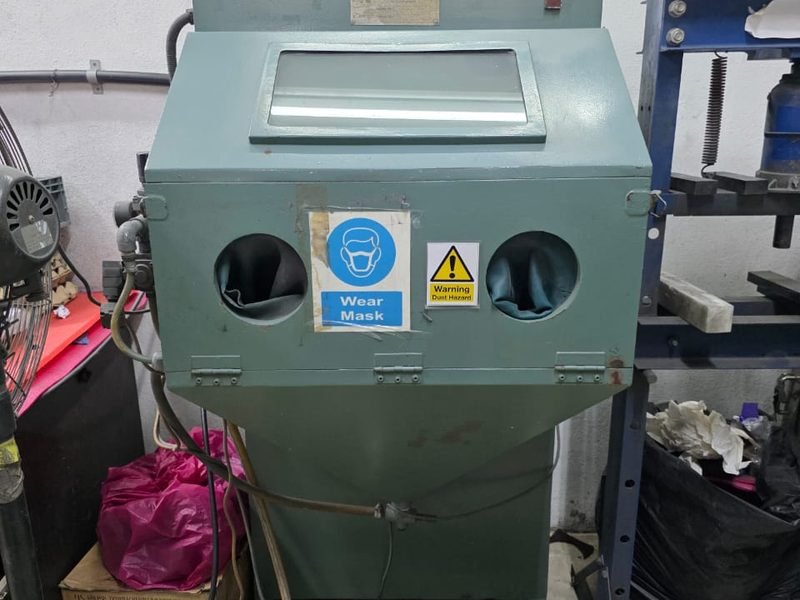

Sandblasting Machine

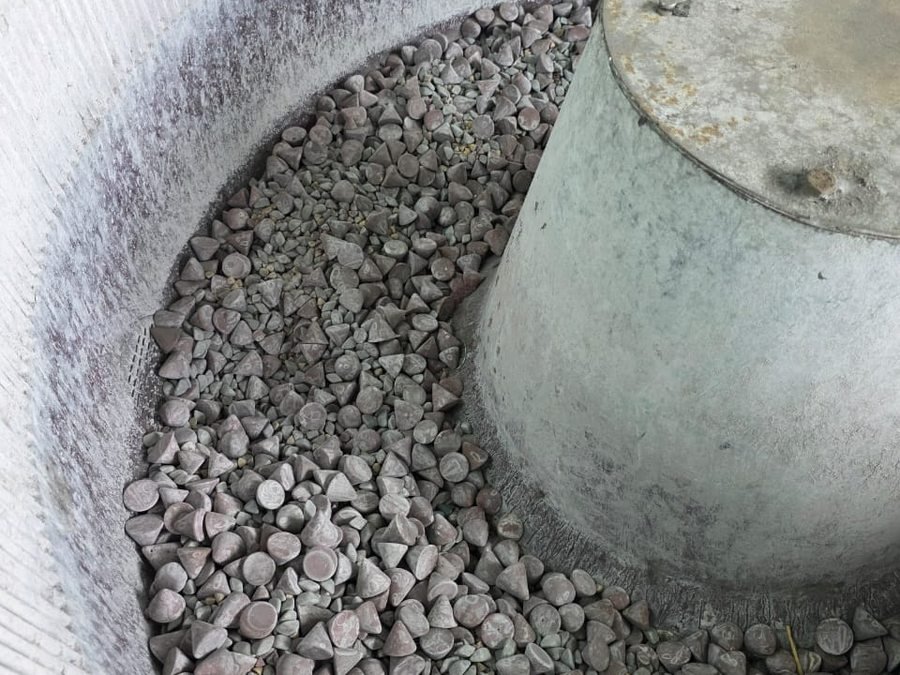

Tumbling Machine

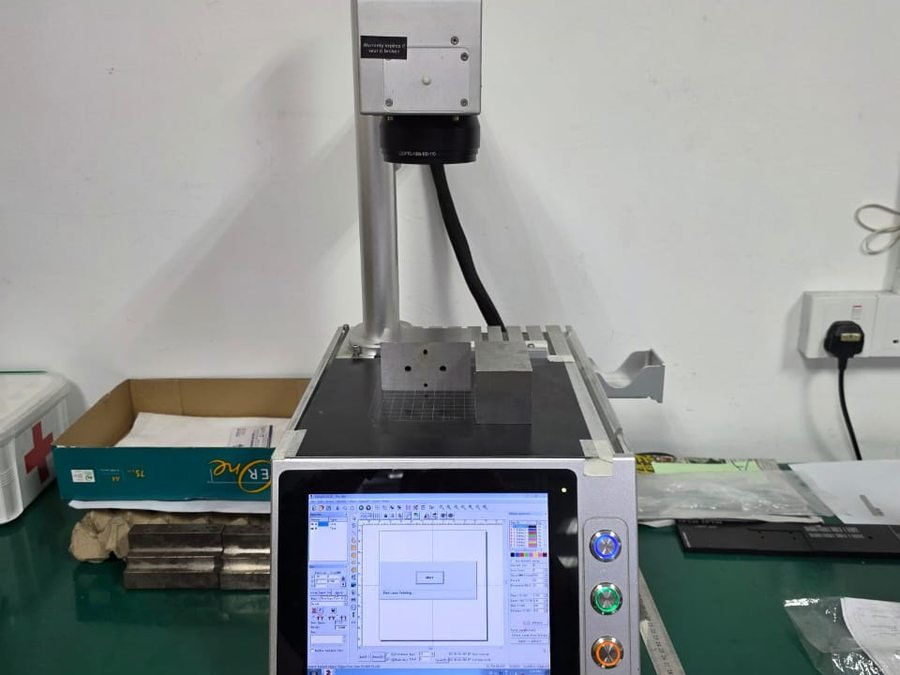

Laser Engraving Machine
3D Metal Printing (collaboration with partners)
Precision assured

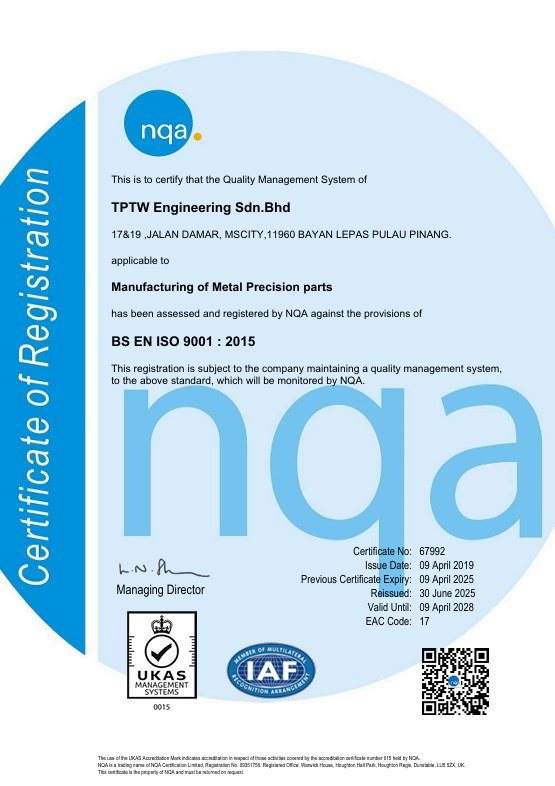

ISO 9001:2015
NQA — Quality Management

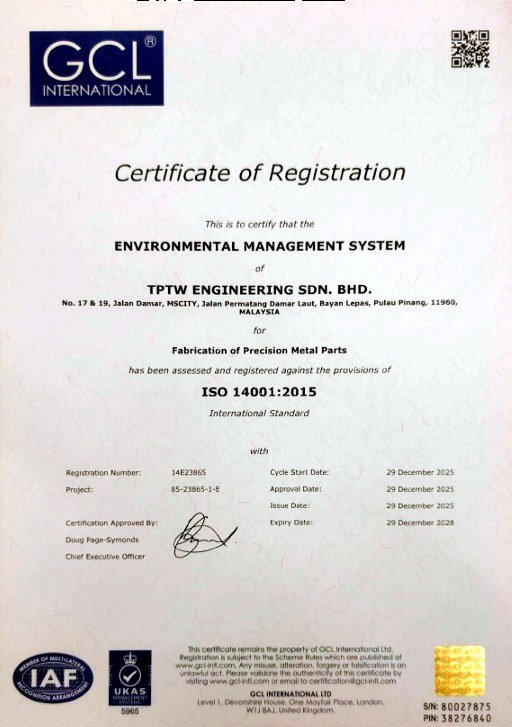

ISO 14001:2015
GCL — Environmental Management

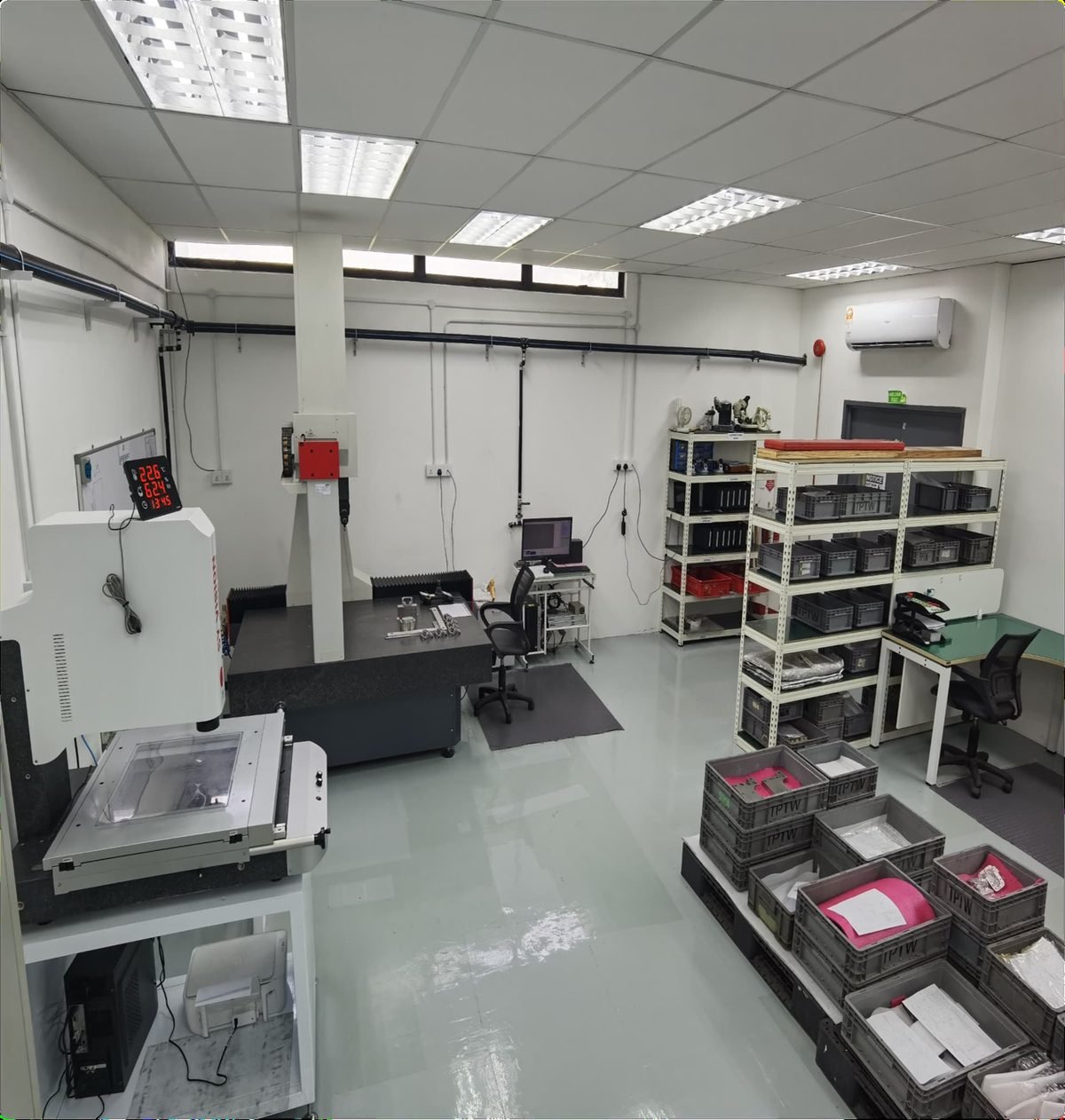

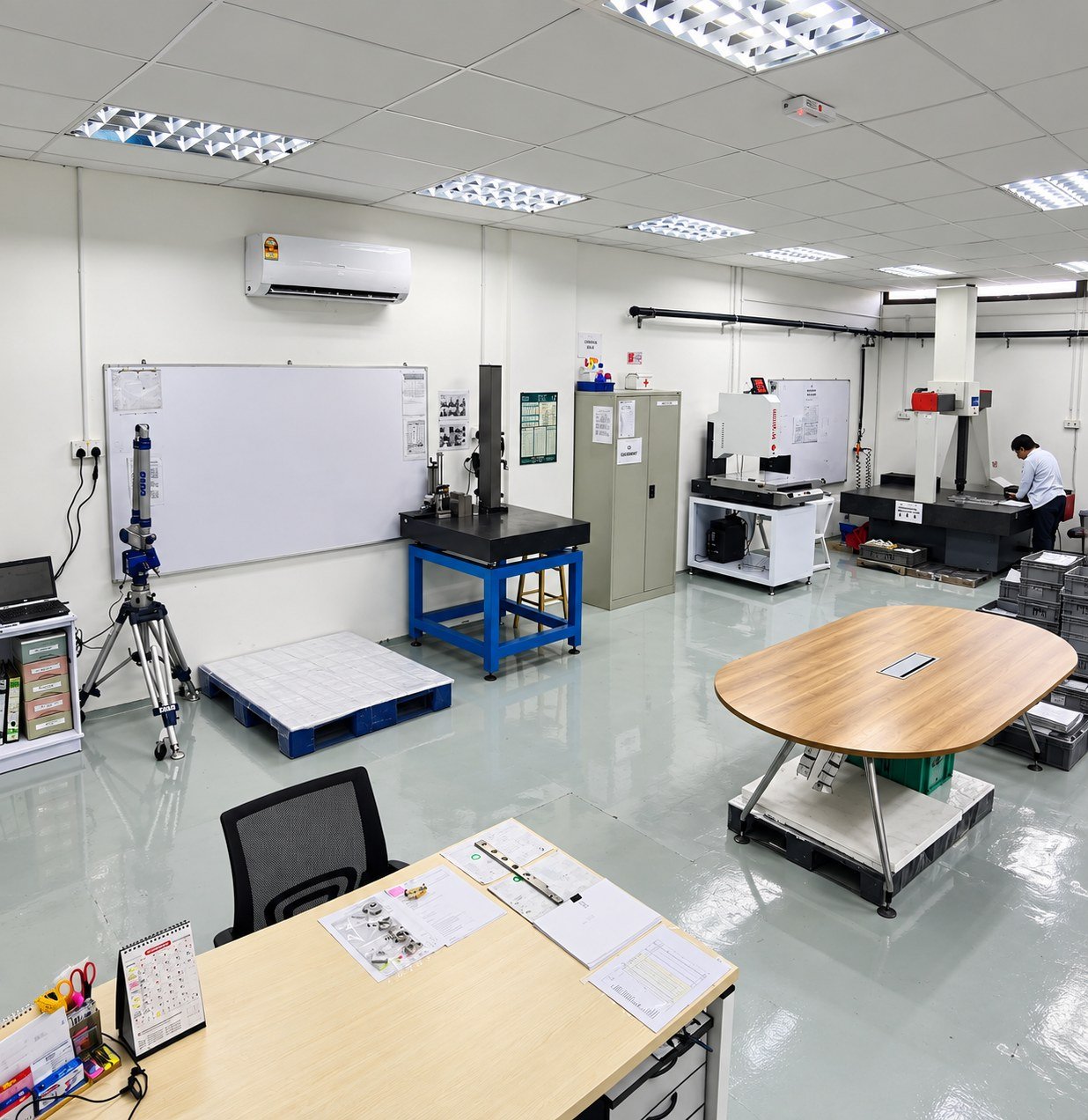

Quality Department
Inspection and metrology backed by a temperature-controlled environment and rigorous quality practice.
-
Temperature Controlled RoomMaintained at 21 ±3°C for stable, repeatable measurement
-

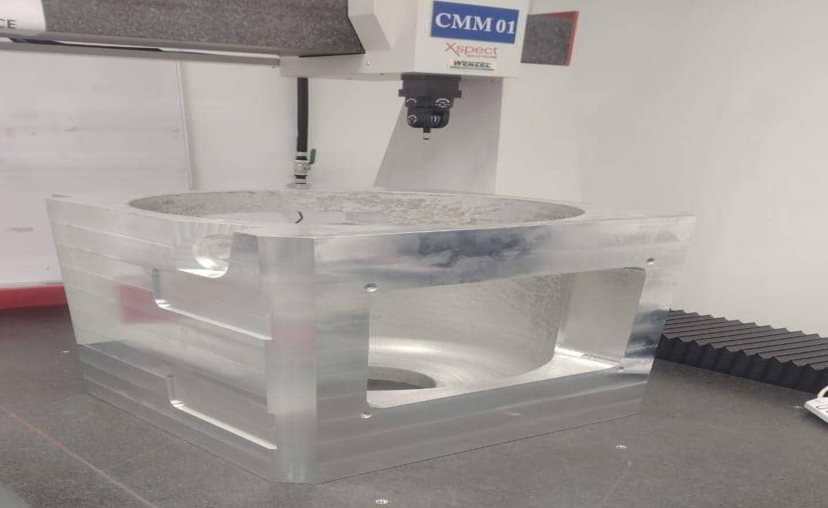

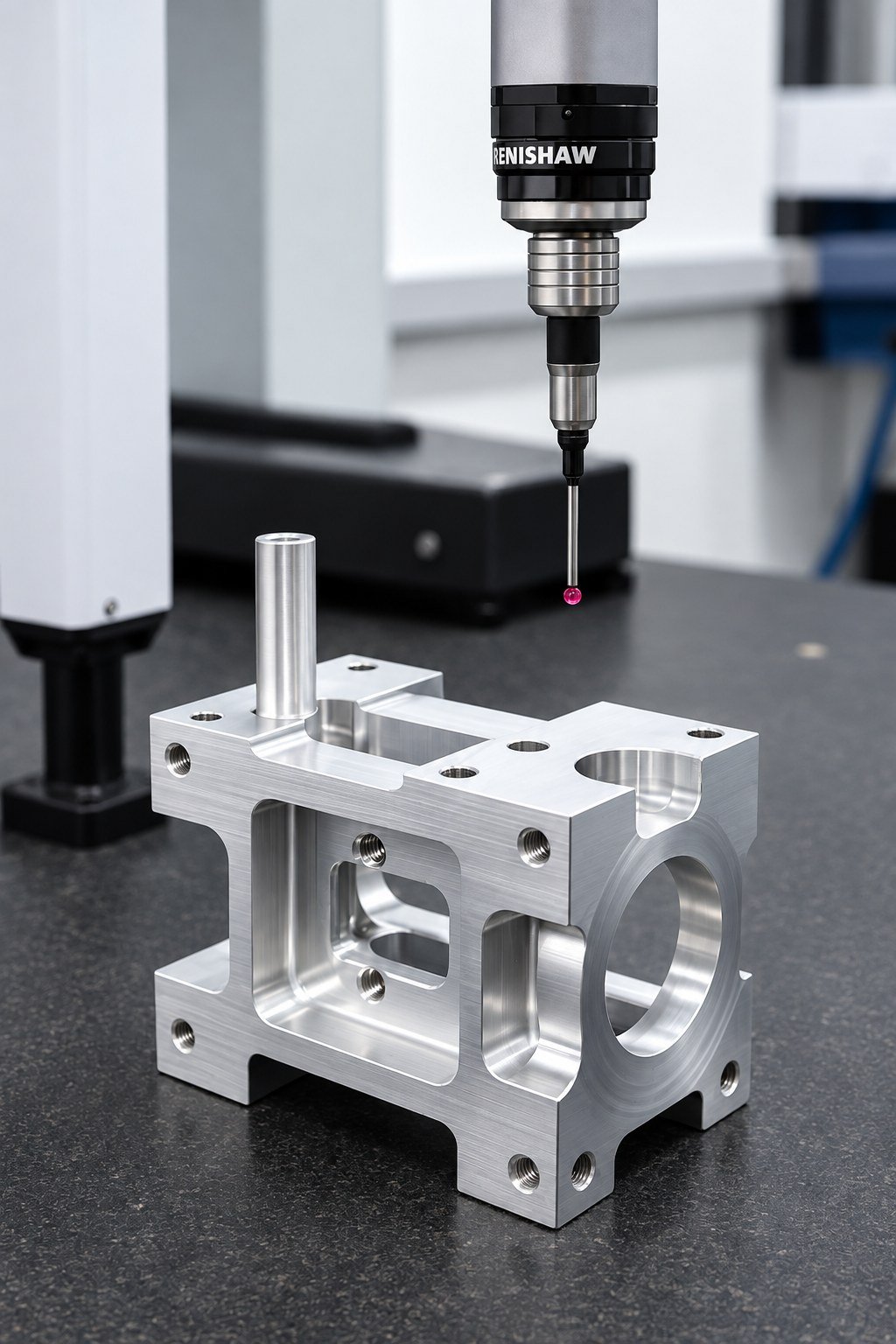

Metrology EquipmentCMM, VMM (vision), profile projector, height gauge, surface roughness tester & more.
-
GD&T ExpertiseSkilled interpretation of geometric dimensioning & tolerancing specifications
-
AQL & CPK Standard PracticeAcceptance Quality Limit sampling and Process Capability Index monitoring
-
"Copy Exact" StandardFollowed as required by customers and industry expectations
Audited to ISO 9001, ISO 14001 and ISO 13485 by accredited certification bodies. See our certifications →
The 6Ms of production
Smart Manufacturing
Production is planned and controlled around the six factors that shape every job — from the people on the floor to the environment the work is done in.
6Ms of
Production
Production
Manpower
Method
Machine
Material
Mother Nature (Environment)
Measurement
Full visibility

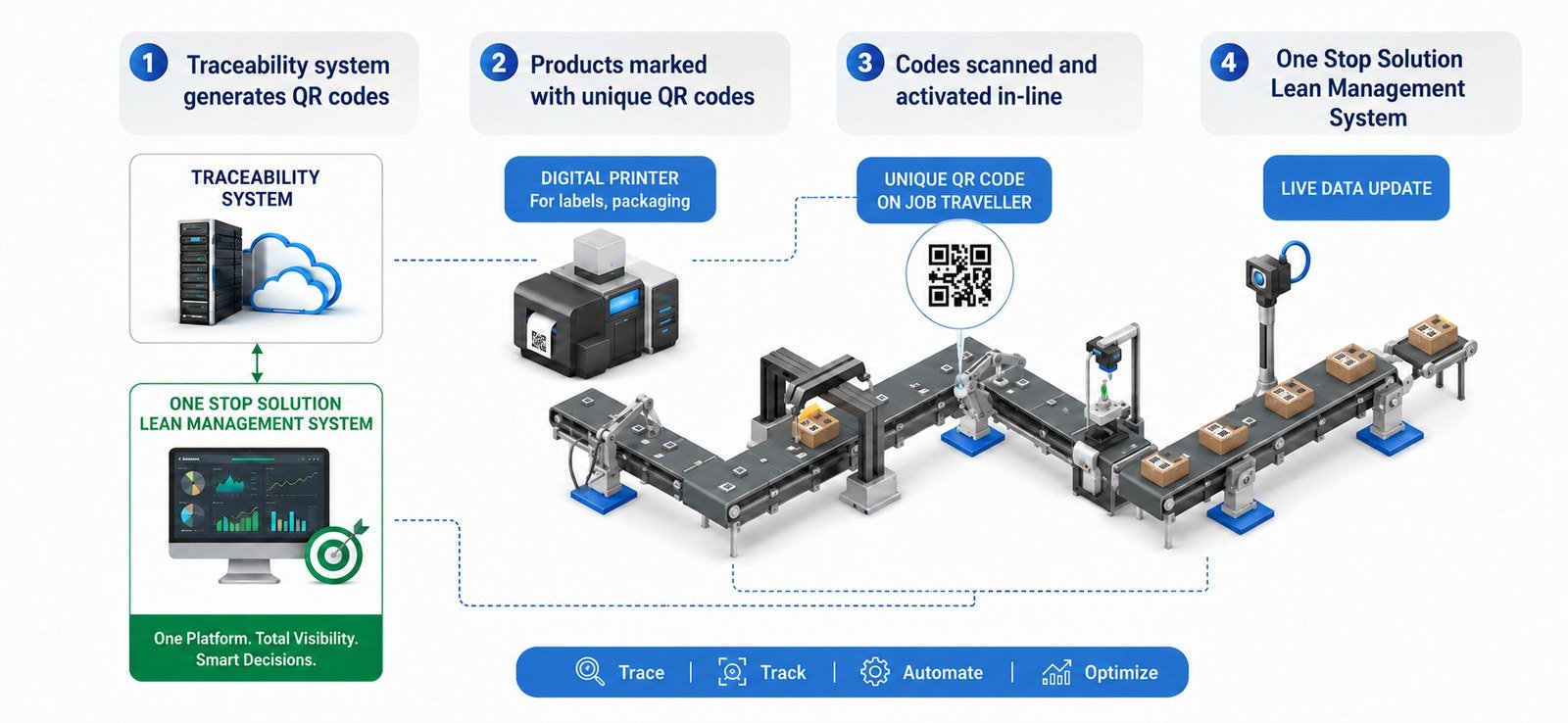

Traceability & Lean Management
Every job carries a unique QR code — giving one platform for total visibility from raw material to delivery.
What we machine
Key Materials
Machines are strictly grouped by material type to prevent contamination and ensure consistency.
Aluminum
- ALU 6061-T6, T4, T5
- ALU 6061-T651
- ALU 6061-T6511
- ALU 6082
- ALU 6063
- ALU 5083
- ALU 5052
- ALU 5757
- ALU 5082
- ALU 7075
- ALU 7050
- ALU 7175
- ALU H1100-H14
- ALU 52S
& more
Stainless Steel & Metal Alloy
- SUS 303
- SUS 304 / 304L
- SUS 316 / 316L
- SUS 440C
- SUS 410
- SUS 403
- SUS 347
- SUS 825
- SUS 430F
- 1.431 ; SUS 301
- 2083 ; SUS 420
- SUS 420J2
- SUS 17-4
- Inconel 718
- Inconel 625
- Invar 36
& more
Ceramic
- AL 2O3 ; Al₂O₃
& more
Copper, Brass & Bronze
- C1100
- C3604
- C2801P - ½ HARD
- C-2801 P
- C 20700 ½ HARD
- C83600
- C360
- CuZn39Pb3 (2.0401)
- Beryllium Copper
- Chromium Copper
& more
Titanium
- Grade 2, R50400
- Grade 5, R56400
& more
Mild Steel & Tool Steel
- A36
- S275JR
- S355J2G3
- M.S 1215
- Silver Steel 1.221
- Carbon Steel 760
- Carbon Steel 1045
- Carbon Steel 1.061
- Carbon Steel 1030
- PM 30, PM 23, PM 60
- DF2 (Tool Steel)
- SKD 11 (Tool Steel)
- XW 41 (Tool Steel)
& more
Plastic
- ABS
- PEEK (Thermo Plastic)
- Derlin
- Polycarbonate
- Polypropylene
- Cast Nylon
& more
All Across The World
Process control
Manufacturing Control Protocol
Strict controls that protect part quality and keep results consistent, batch after batch.
-
01

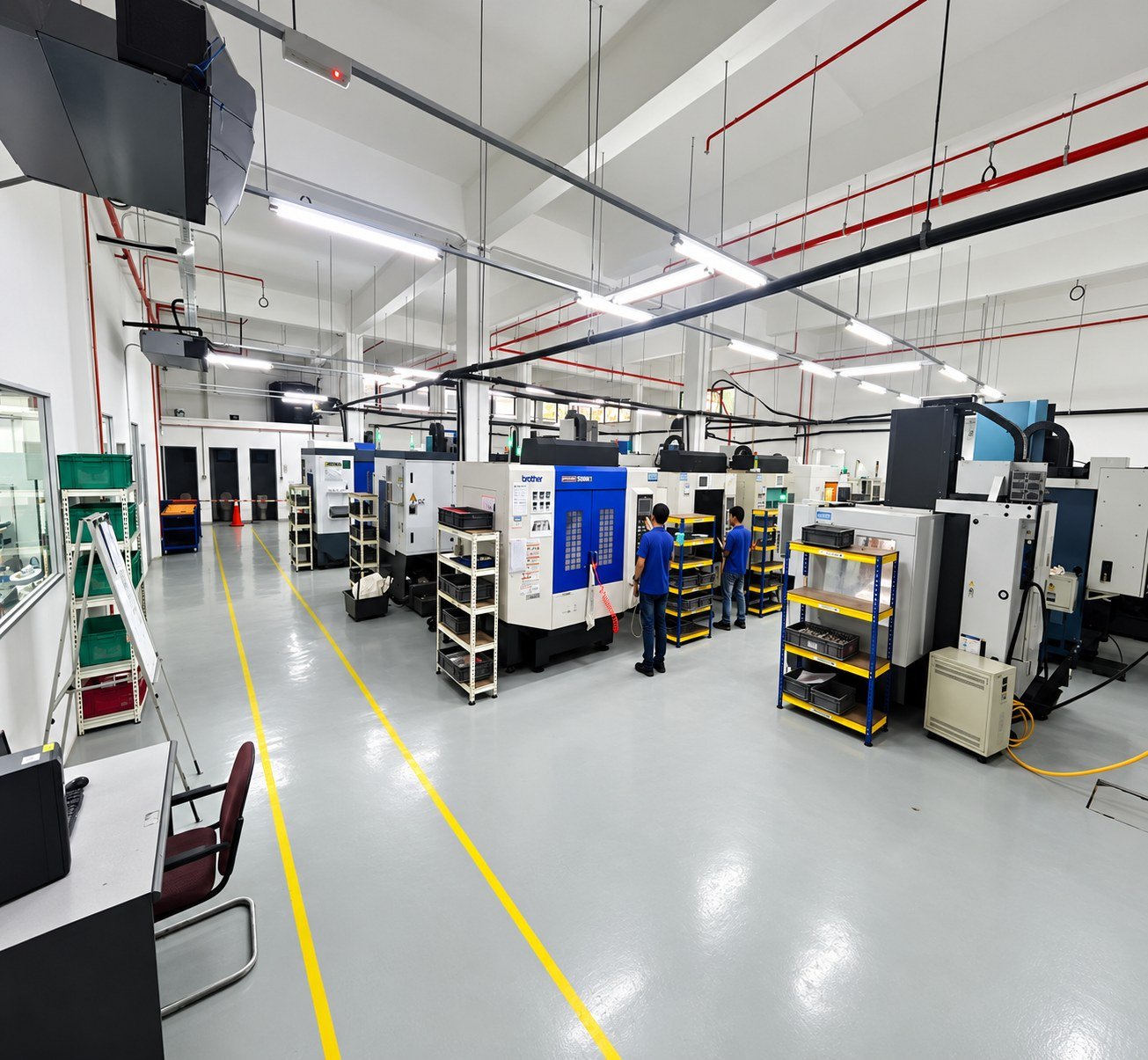

Machines grouped by material
Machines are strictly grouped by material type — cross-material machining is not allowed, preventing contamination and ensuring quality consistency.
-
02
Tool management control
Common practice on tool management, controlling usage against clear performance indicators.
-
03
"Copy Exact" standards
Copy Exact standards are followed as required by customer and industry expectations.
Expansion completed
Recent Machine Investments
New capability already installed and running on our shop floor.
Installed

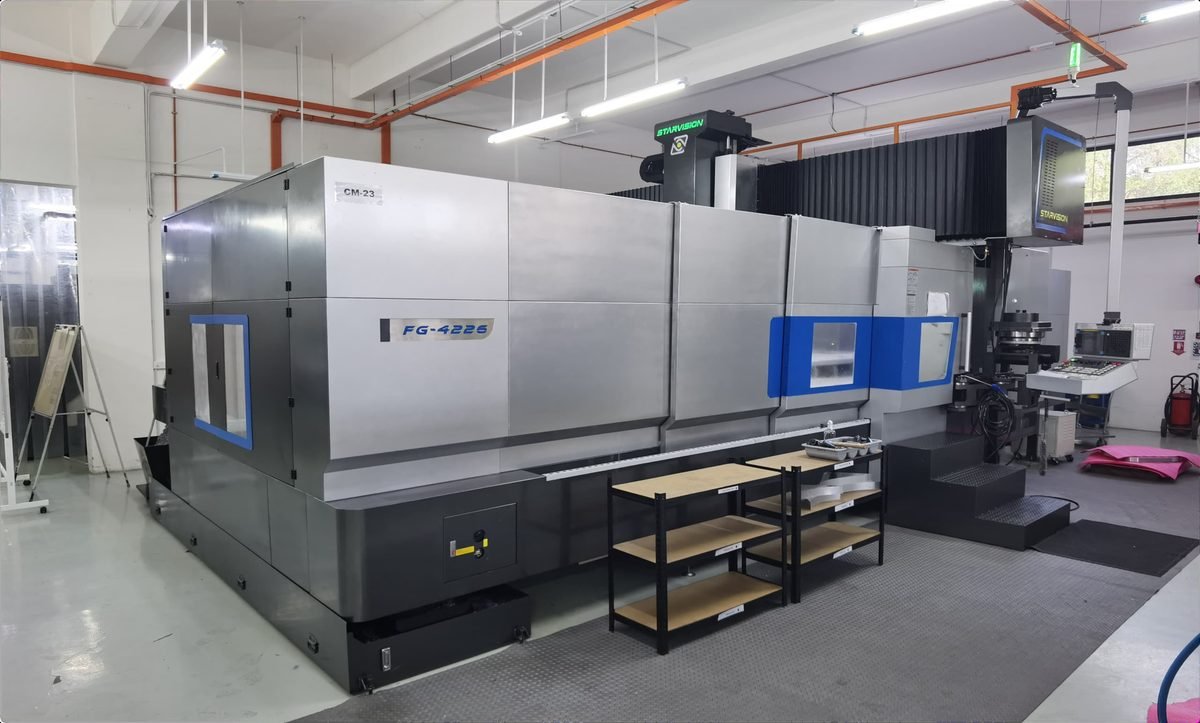

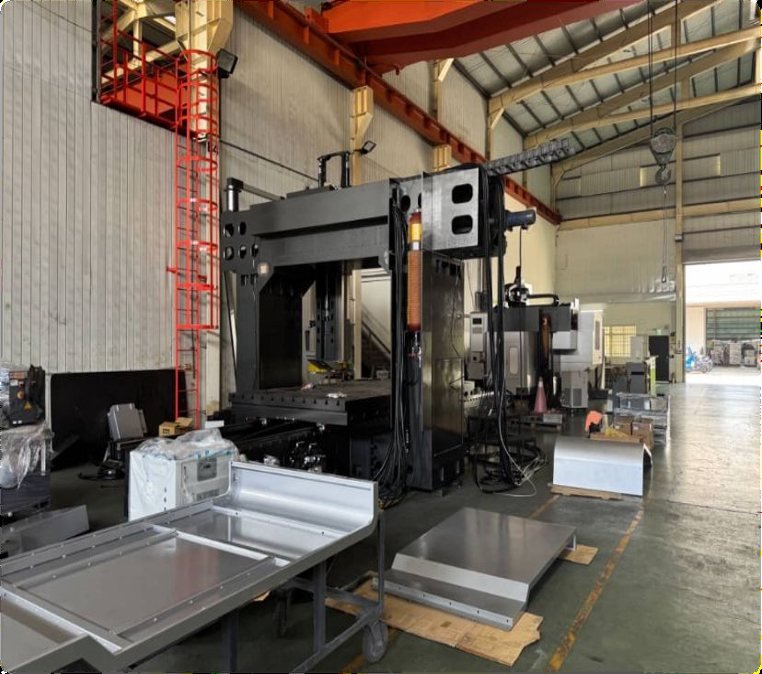

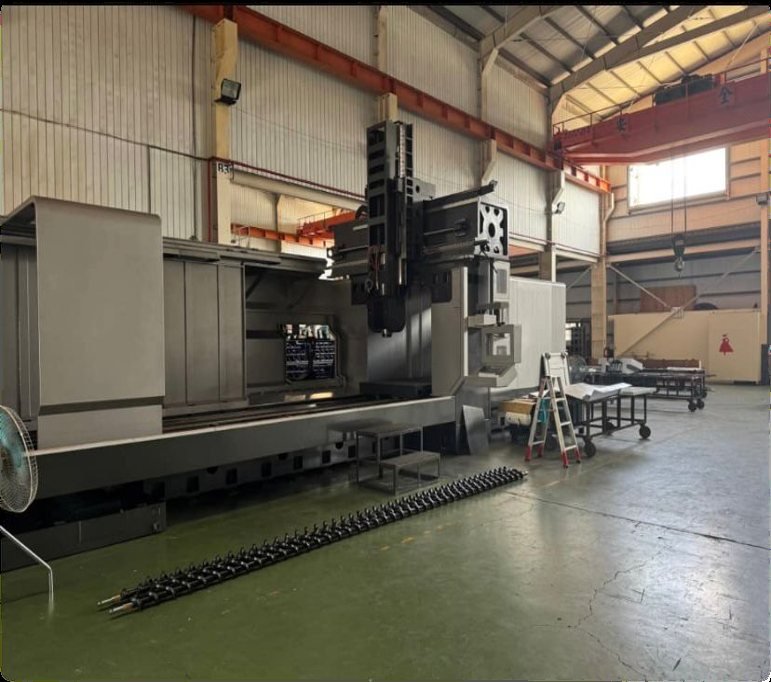

4.2 Metre Double-Column,
4.2 Metre Double-Column,
3 Axis with 5-Face Machining Capability
We specialise in machining large parts such as structural frames, machine tables and chambers — with high precision and stability.
- Double-column capability with 5-face machining which ideal for large structural and chamber components
Installed

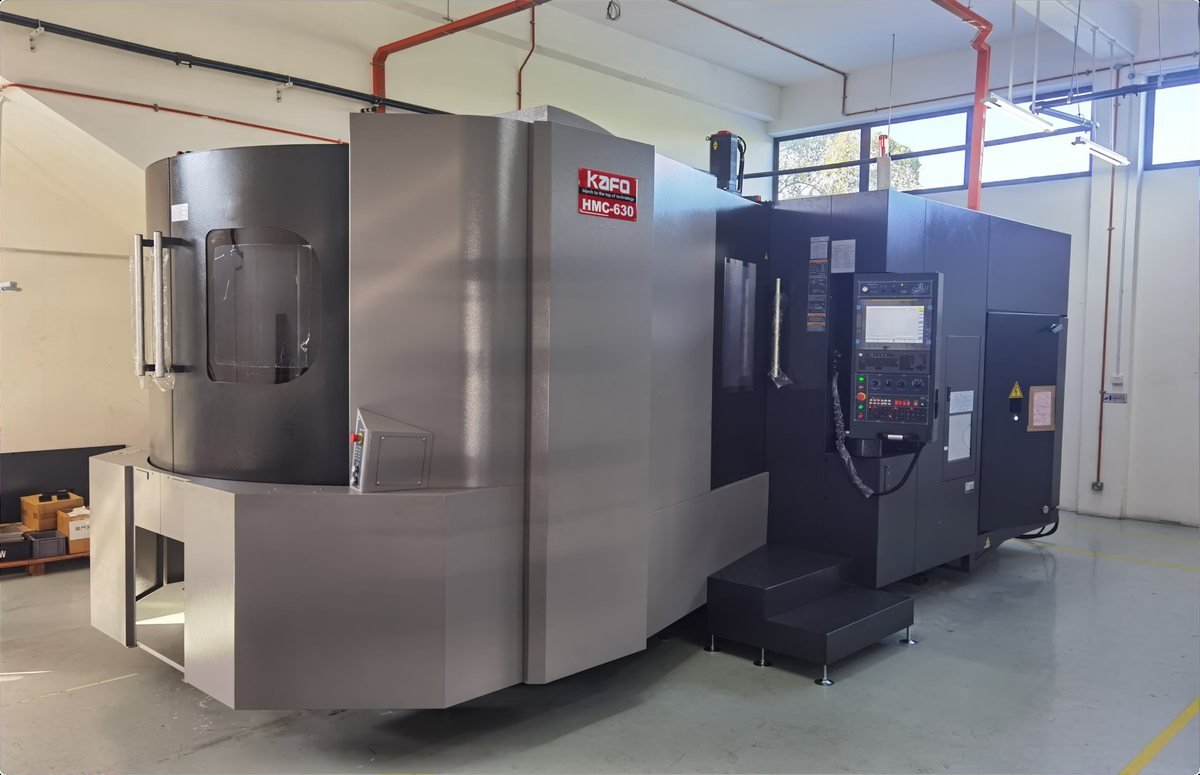

1 Metre Horizontal
1 Metre Horizontal
KAFO HMC-630

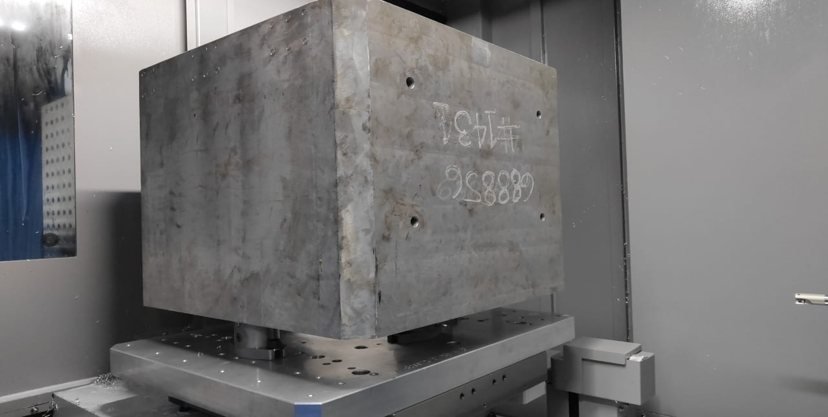

A horizontal machining center well suited to chamber machine base blocks and similar heavy, high-accuracy components.
- Horizontal spindle for efficient chip evacuation
- Excellent for base blocks and heavy parts
- Pallet types handling for reduced set-up time
Built for your toughest tolerances
From micro components to 4-metre structural frames — talk to us about your requirements.
